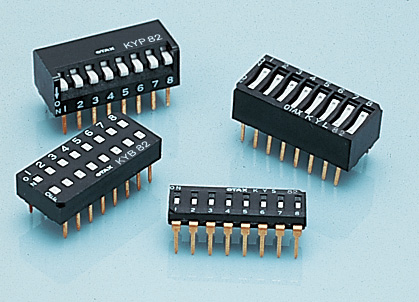

   Product Name:KY Series "END TO END STACKABLE" LOW PROFILE DIP SWITCHES



   particular explain:

KY Series "END TO END STACKABLE" LOW PROFILE

"END TO END STACKABLE" LOW PROFILE DIP SWITCHES Compliant with RoHS

Part of this series products complied with RoHS requests,for example KYS102、KYS22、KYS22E、KYS82S、KYS82SE、KYP62-2
[ Rating ] DC24V 25mA(on/off)max or DC50V 100mA (City power)max
[ Contact resistance ] Initial contact resistance is 100mΩ max on the conditions of DC2V 10mA.
[ insulation Voltage ]For 1 minute at AC300V between the insulation terminals at normal voltage and the terminals grounded ,it will be ok.
[ Insulation resistance] DC100V 100MΩ min.
[ Humidity resistance ] For 250 hours at the temperature of 38~42 centigrade and the relative humidity of 90%~95%then placed in the moist room for 30 minute after dried ,the insulationn resistance was 10MΩ min.
[ salt spray resistance ] To withstand the atmosphere 5% saltwater at temperature of 32~38 centigrad then wiped salt soak,for six-hour air-dry at the temperature of 57 centigrade , without electrify and rusting.
[ Electrical Life ]DC24V,25mA,1,000 operations.
[ Mechanical Life]2,000 cycles at no load.
[ Heat resistance ] For 250 hours at the temperature of 97~103,it will not bring Unusual electrical properties,insulation material deformation and crackle, and other anomalies.
[ Cold resistance ] For 250 hours at the temperature of the(-48)-(-42) ,it will not bring unusual electrical properties,insulation material deformation and crackle ,other anomalies.
[ vibration resistance ] 10-55 HZ with 1.5 mm amplitude for 1 minute as 1 cycles shall be applied for 2 hoursto each of 3 mutually perpendicular axis,the switch will be fine.
[ Shock resistance ] it shall withstand acceleration of 50G for 10-12 m sec to be applied 3 times in each direction of 3 mutually perpendicular axis.
[ operating temperature rang ] -30--+85
